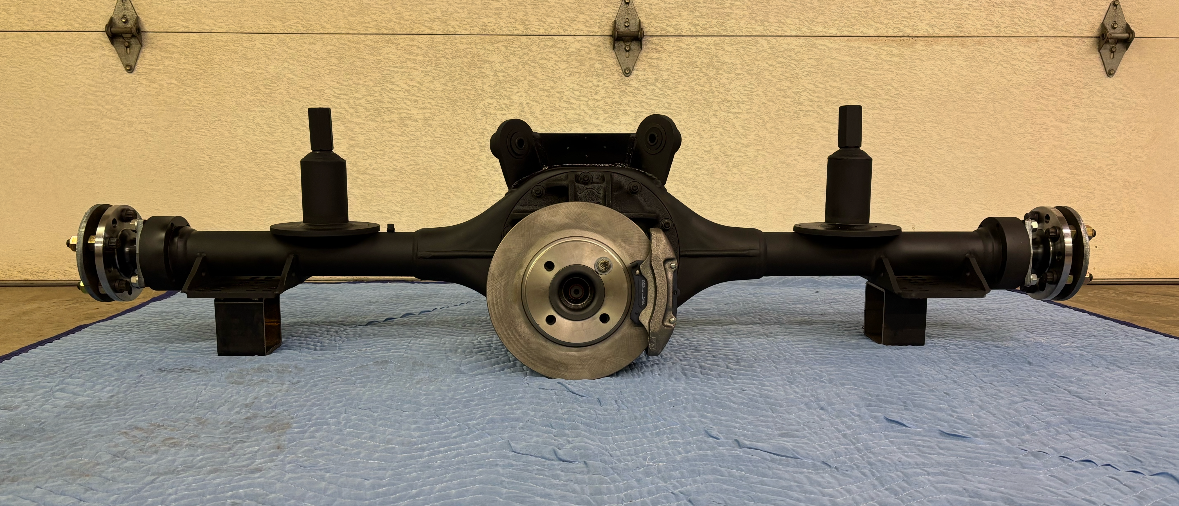

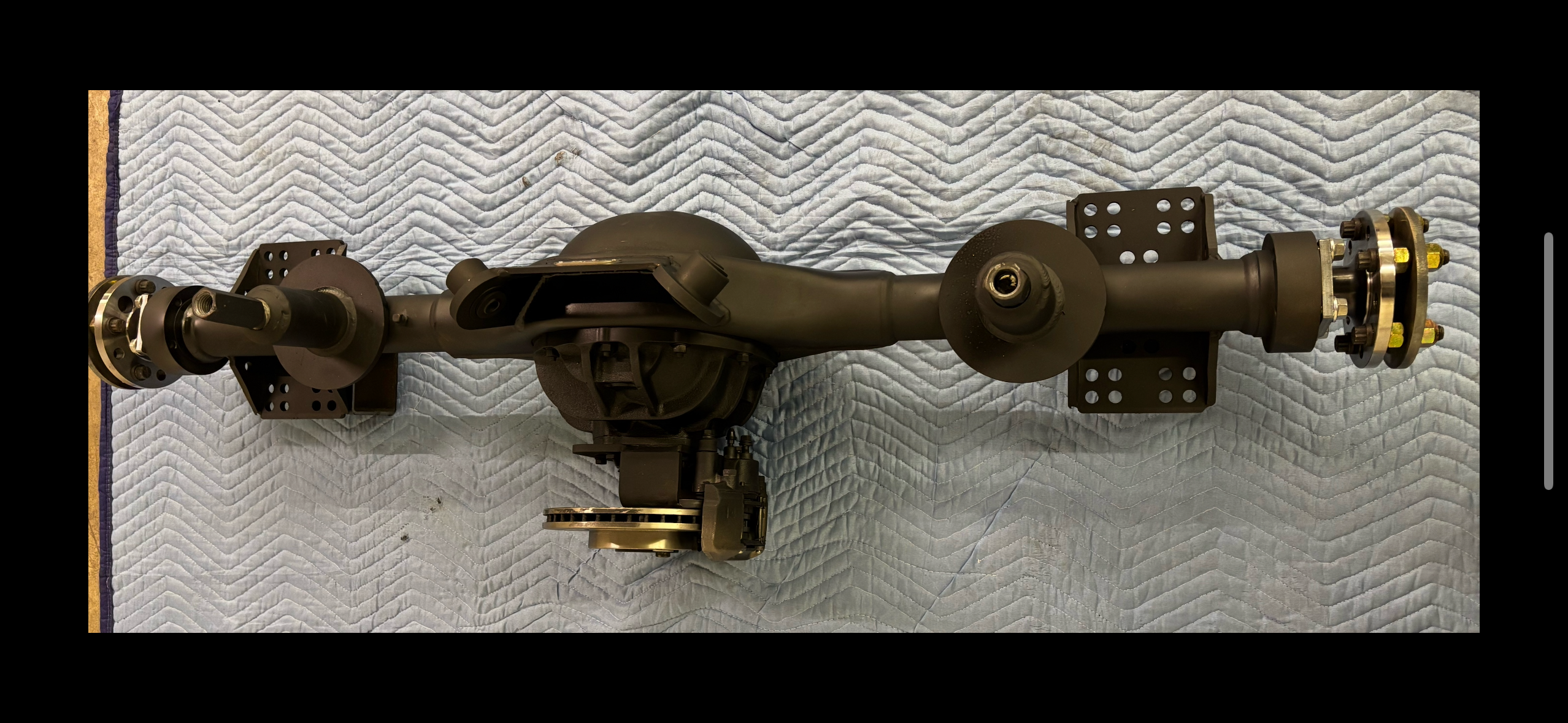

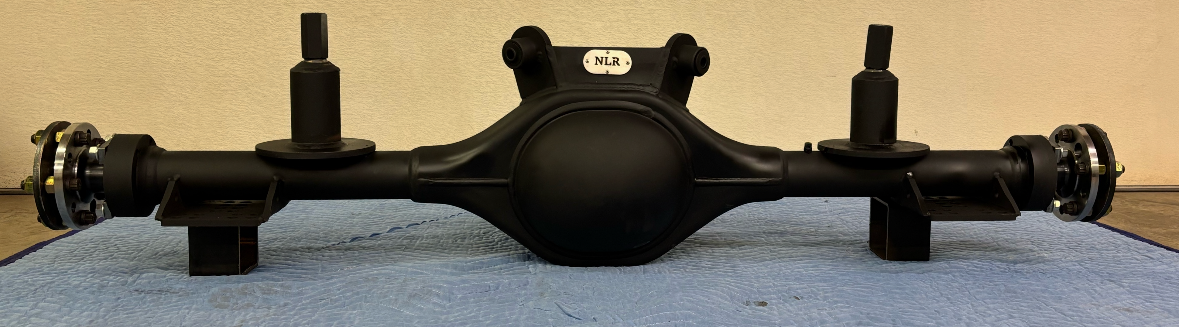

STOCK APPEARING 9-INCH REAREND

Stock appearing 9 inch

40 spline Yukon nodular iron 9 inch center section

28 spline nodular iron dayton pinion support

486 gears

motive performance ring and pinion

Timkin usa bearings

40 spline mark Williams axles

Pinion brake

Extreme duty center 1/4 wall

3 od 1/2 wall dom axle tubes

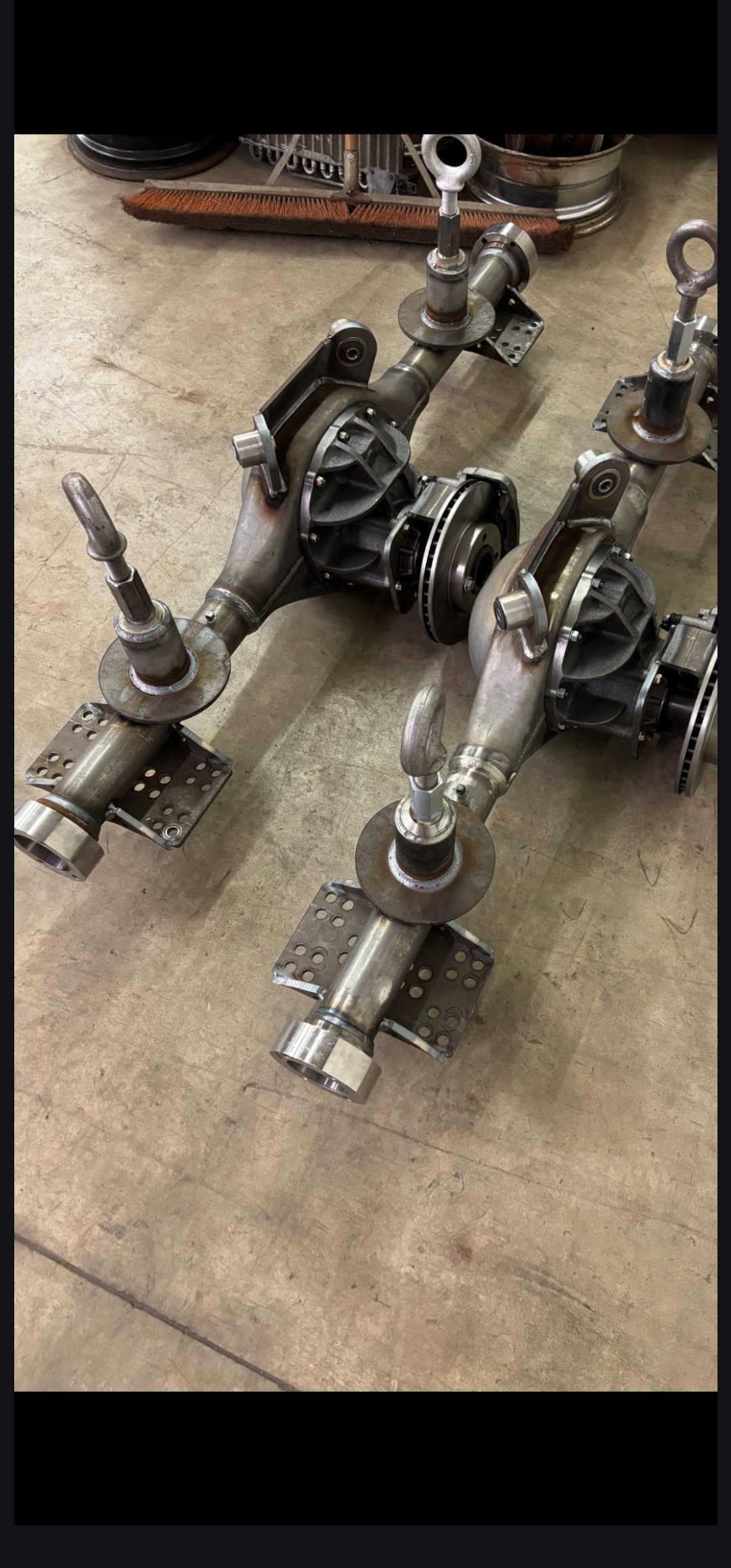

Internally braced housing

Aftermarket axle ends with 3/8 thick bearing flange

Jigged for 80 to 97 fords and old iron gms. Also can be put in leaf spring cars. (Sell the pads and brackets to mount in a 98 newer separate.)

With coil spring mounts (ball bearing setup)

Broke in ready to go
